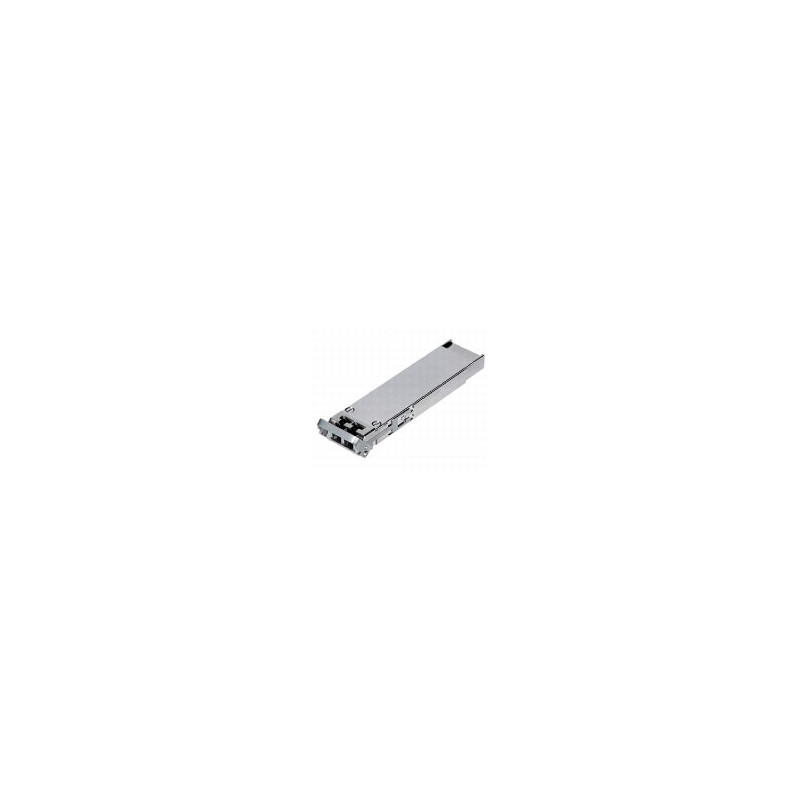

Cisco XFP, OC-192/STM-64, Short-Reach/Intra-Office Optics Module
XFP, OC-192/STM-64, Short-Reach/Intra-Office Optics Module, 1310 nm, SMF, LC
Transmitter
In the transmit direction, the transceiver module receives a 10-Gbps electrical data signal and transmits the data as an optical signal via an E/O converter. The optical output power is held constant by an automatic power control circuit. The transmitter also contains a Clock Data Recovery (CDR) circuit. The function of this circuit is to attenuate and reshape any jitter received on the electrical interface.
Receiver
In the receive direction, the transceiver module receives a 10-Gbps optical signal and converts it to an electrical equivalent. The receiver contains a CDR circuit.
In the transmit direction, the transceiver module receives a 10-Gbps electrical data signal and transmits the data as an optical signal via an E/O converter. The optical output power is held constant by an automatic power control circuit. The transmitter also contains a Clock Data Recovery (CDR) circuit. The function of this circuit is to attenuate and reshape any jitter received on the electrical interface.
Receiver
In the receive direction, the transceiver module receives a 10-Gbps optical signal and converts it to an electrical equivalent. The receiver contains a CDR circuit.
Data sheet
- Cabling technology
- OC-192/STM-64
- Compliance industry standards
- ITU G694 I-64.1, GR253 SR-1, 10GE BASE LR, 1200-SM-LL-L
- Connectivity technology
- Wired
- Connector(s)
- LC-LC
- Data transfer rate (max)
- 10000 Mbit/s
- Fiber type
- SMF
- Interface
- XFP
- Mean time between failures (MTBF)
- 3039506 h
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 70 °C
- Power consumption (typical)
- 9W
- Source data-sheet
- Icecat.biz
- Wavelength
- [1250 nm – 1600 nm]
Specific References
- EAN13
- 0746320914251
