Cisco DWDM XFP

Cisco DWDM XFP

10GBASE-DWDM 1560.61 nm XFP (100-GHz ITU grid)
Out of Stock
Reference: DWDM-XFP-60.61=

Require Project Pricing?

Click here to email your parts list and we will send you a quote

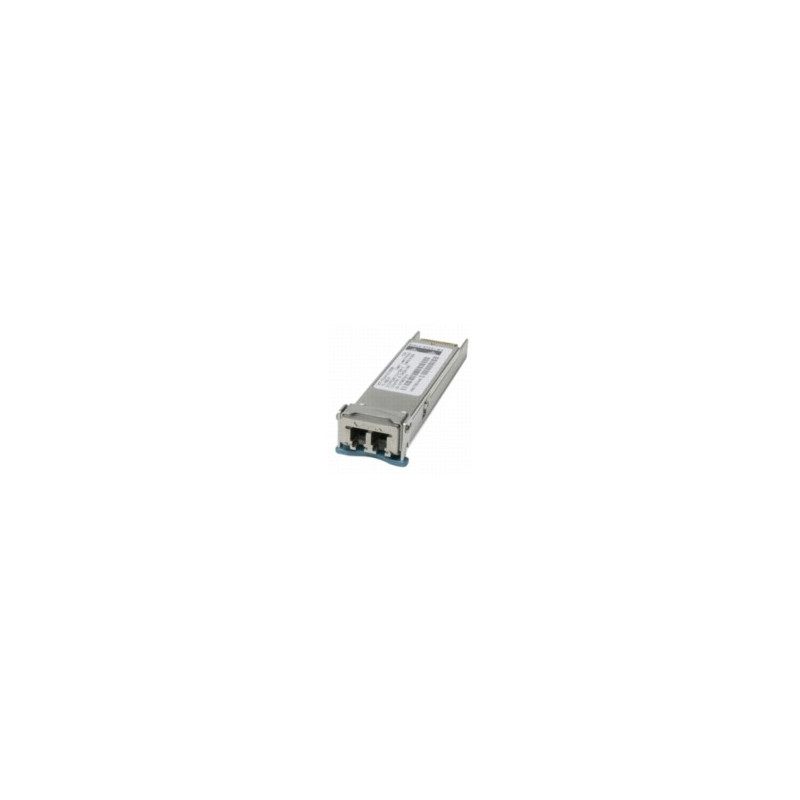

The Cisco® Dense Wavelength-Division Multiplexing (DWDM) XFP pluggable module (Figure 1) allows enterprise companies and service providers to provide scalable and easy-to-deploy 10 Gigabit LAN or WAN services in their networks.



Main features of the Cisco DWDM XFP include:



- The Cisco DWDM XFP supports 10-Gigabit data rates from 9.9G to 11.1G.

- The hot-swappable input/output device plugs into an Ethernet XFP port of a Cisco switch or router to link the port with the network.

- The Cisco DWDM XFP supports the Cisco quality identification (ID) feature, which enables a Cisco switch or router to identify whether or not the module is an XFP module certified and tested by Cisco.

- The standard Cisco DWDM XFP supports 32 nontunable ITU 100-GHz wavelengths.

- The tunable Cisco DWDM XFP supports 80 tunable ITU 50-GHz wavelengths.

- Cisco DWDM XFP modules supports digital optical monitoring capability.
Cisco

Data sheet

Connectivity technology
Wired
Connector(s)
LC/PC
Data transfer rate (max)
10000 Mbit/s
Dimensions (WxDxH)
18.5 x 71 x 8.5 mm
Interface
XFP
Operating temperature (T-T)
8 - 35 °C
Operating temperature range (T-T)
0 - 70 °C
Power consumption (typical)
3.5 W
Source data-sheet
Icecat.biz
Storage temperature (T-T)
8 - 85 °C
Storage temperature range (T-T)
-40 - 85 °C
Wavelength
1560.61 nm
Weight
VFD and cable: 36.6 lb; Pole (each): 50.7 oz; Base: 66.1 lb (VFD and cable: 1.29 lb; Pole (each): 1.79 oz; Base: 2.33 lb)

Specific References

EAN13
0882658116476
