Hewlett Packard Enterprise 3100-8 v2 EI

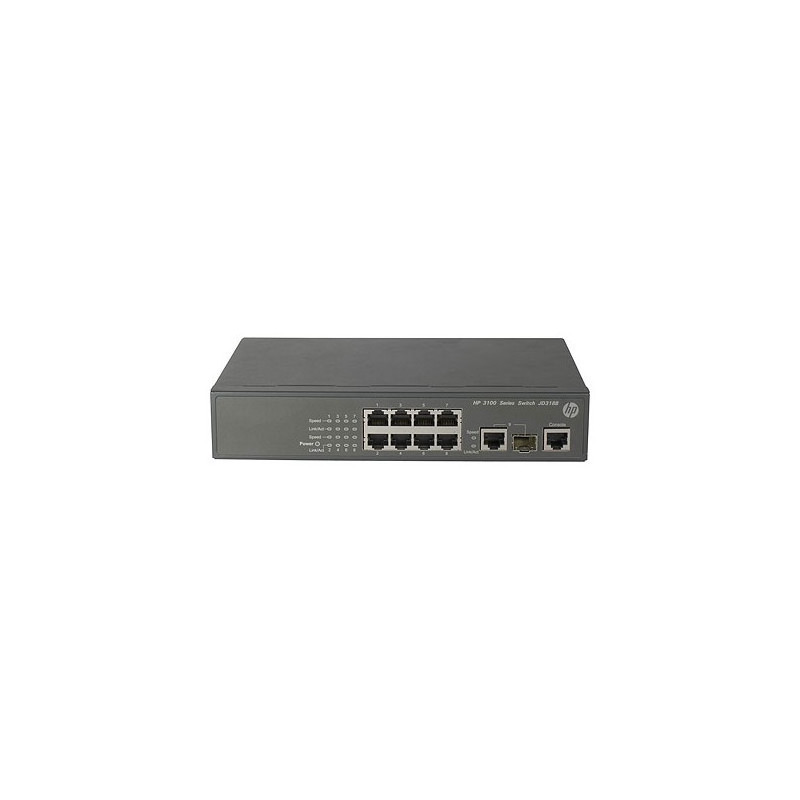

HP 3100-8 v2 EI Switch
HP 3100 EI series switches are Layer 2 Ethernet switches designed for enterprise networks demanding high security and intelligence. They provide 10/100 Mbps downlink and 1000 Mbps uplink Ethernet ports, and serve as access devices for 100 Mbps-to-desktop applications in enterprise networks. In metropolitan area networks or various industry networks, they connect end users or aggregate client devices with 10/100 Mbps connections, converging at a higher-capacity switch with 1000 Mbps interfaces. Features include advanced Quality of Service (QoS), rate limiting, QinQ (virtual LAN [VLAN]/VPN), SSHv2, Multicast VLAN Registration (MVR), Virtual Cable Tester (VCT), HGMP V2, GARP VLAN Registration Protocol (GVRP), access control list (ACL), media access control (MAC)-IP-port binding, Endpoint Admission Defense, voice and protocol-based VLAN, Internet Group Management Protocol snooping, and Power over Ethernet (PoE).
Quality of Service (QoS)
• Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
Management
• Friendly port names: allow assignment of descriptive names to ports
Connectivity
• IPv6 (on v2 products): Telnet v6: to allow IPv6 management. DNSv6 Client: for IPv6 host management. SNMPv6: for IPv6 switch management. DHCPv6 Client: for automatic IPv6 address configuration of a switch.
Performance
• Hardware-based wire-speed access control lists (ACLs): feature-rich ACL implementation (TCAM based) helps provide high levels of security and ease of administration without impacting network performance
Resiliency and high availability
• Separate data and control paths: increase security and performance
Layer 2 switching
• PVST+ on v2 products: provides greater interoperability
Layer 3 services
• Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet
Quality of Service (QoS)
• Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
Management
• Friendly port names: allow assignment of descriptive names to ports
Connectivity
• IPv6 (on v2 products): Telnet v6: to allow IPv6 management. DNSv6 Client: for IPv6 host management. SNMPv6: for IPv6 switch management. DHCPv6 Client: for automatic IPv6 address configuration of a switch.
Performance
• Hardware-based wire-speed access control lists (ACLs): feature-rich ACL implementation (TCAM based) helps provide high levels of security and ease of administration without impacting network performance
Resiliency and high availability
• Separate data and control paths: increase security and performance
Layer 2 switching
• PVST+ on v2 products: provides greater interoperability
Layer 3 services
• Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet
Data sheet
- 10G support
- No
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100-240 V
- Auto MDI/MDI-X
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Fast Ethernet (10/100)
- Colour of product
- Grey
- Depth
- 160 mm
- DHCP client
- Yes
- DHCP server
- Yes
- Dimensions (WxDxH)
- 230.1 x 160 x 43.7 mm
- Electromagnetic compatibility
- FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN
- Flash memory
- 96 MB
- Heat dissipation
- 31 BTU/hr
- Height
- 43.7 mm
- I/O ports
- 8 autosensing 10/100 ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX), Duplex: half or full; 1 dual-personality port, auto-sensing 10/100/1000BASE-T or SFP; 1 RJ-45 serial console port
- Input voltage
- –36 - –72 V
- Internal memory
- ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
- Latency
- 100 Mb Latency: < 6 µs (64-byte packets); 1000 Mb Latency: < 5 µs (64-byte packets)
- MAC address table
- 96000 entries
- Management platform
- IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager
- Memory type
- SDRAM
- Mounting
- Requires angle mounting set if rack mounted (not included)
- Networking standards
- IEEE 802.3,IEEE 802.3u
- Operating relative humidity range
- 10 to 90 %
- Operating temperature range (T-T)
- 0 - 45 °C
- Power consumption (typical)
- 9W
- Safety
- UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance
- Size
- 230.1 mm (9.06 ")
- Source data-sheet
- Icecat.biz
- Storage relative humidity range
- 5 to 95 %
- Storage temperature range (T-T)
- -40 - 70 °C
- Switch layer
- L7
- Switching capacity
- 3.6 Gbit/s
- Throughput
- 2.6 Mpps
- Weight
- 1800 g
- Width
- 230.1 mm
Specific References
- EAN13
- 0886111500901
HP 3100-8 v2 EI Switch
