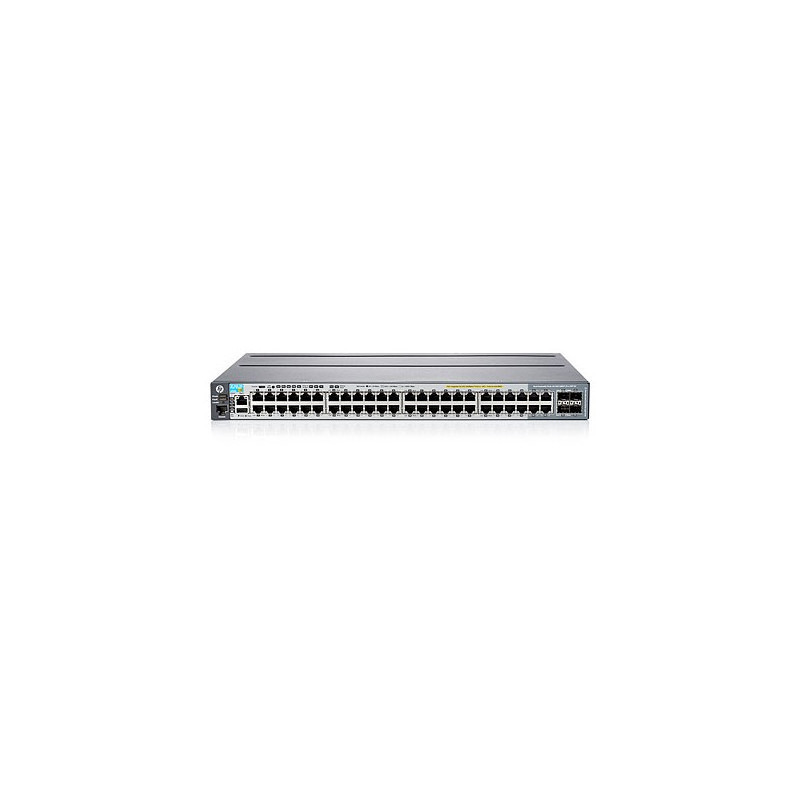

HP 2920-48G-POE+ Switch

Hewlett Packard Enterprise 2920-48G-PoE+

HP 2920-48G-POE+ Switch
Out of Stock
Reference: J9729A

Require Project Pricing?

Click here to email your parts list and we will send you a quote
The HP 2920 Switch Series provides security, scalability and ease of use for enterprise edge, SMB and branch office access layer deployments. A powerful HP Networking ASIC delivers low latency, more packet buffering, and adaptive power consumption to this robust Basic Layer 3 switch that supports modular stacking, 10GbE, RIP routing, PoE+, ACLs, sFlow and IPv6.



The HP 2920 Switch Series can be managed with the optional HP Intelligent Management Center (IMC) software for a single view of your entire network and is ready for the Software-defined Network (SDN) with OpenFlow support.

Data sheet

10G support
Yes
AC input frequency
50/60 Hz
AC input voltage
100-240 V
Auto MDI/MDI-X
Yes
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Built-in processor
ARM1176
Colour of product
Grey
Copper ethernet cabling technology
10BASE-T,100BASE-TX,1000BASE-T
Depth
336 mm
DHCP server
Yes
Dimensions (WxDxH)
442.5 x 336 x 43.9 mm
Electromagnetic compatibility
FCC part 15 Class A; VCCI Class A; EN 55022/CISPR 22 Class A
Flash memory
1024 MB
Heat dissipation
399 BTU/h
Height
43.9 mm
I/O ports
44 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)
Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 4 RJ-45 dual-personality 10/100/1000 PoE
Input voltage
–36 - –72 V
Internal memory
≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
Latency
< 3.2 µs (FIFO 64-byte packets)
Latency (10 Gbps)
3.2 µs
MAC address table
96000 entries
Management platform
HP PCM+; IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; out-of-band management (RJ-45 Ethernet); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; out-of-band management (serial RS-232C or Micro USB)
Memory type
SDRAM
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3u
Operating altitude
3 km
Operating relative humidity (H-H)
15 - 95 %
Operating relative humidity range
15 to 95 %
Operating temperature (T-T)
8 - 35 °C
Operating temperature range (T-T)
0 - 55 °C
Packet buffer memory
11.25 MB
Power consumption (typical)
487 W
Power requirements
370 W of PoE+ power is available using the internal default power supply.
Power supply type
1 x J9738A
Safety
CE Labeled; EN 60825-1 Safety of Laser Products-Part 1; FCC Part 15, Subpart B; GOST; EU RoHS Compliant; EN 55022 Class A; EN 55024: 1998; C-Tick; ICES-003, Class A; VCCI Class A; IEC 60950-1:Second Edition; IEC 60825-1; EN62479:2010; CSA C22.2 No. 60950-
Size
442.5 mm (17.42 ")
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
15 - 95 %
Storage temperature (T-T)
8 - 85 °C
Storage temperature range (T-T)
-40 - 70 °C
Switch layer
L7
Switching capacity
993.6 Gbps
Throughput
130.9 mpps
Weight
5700 g
Width
442.5 mm

Specific References

EAN13
0886112322526
