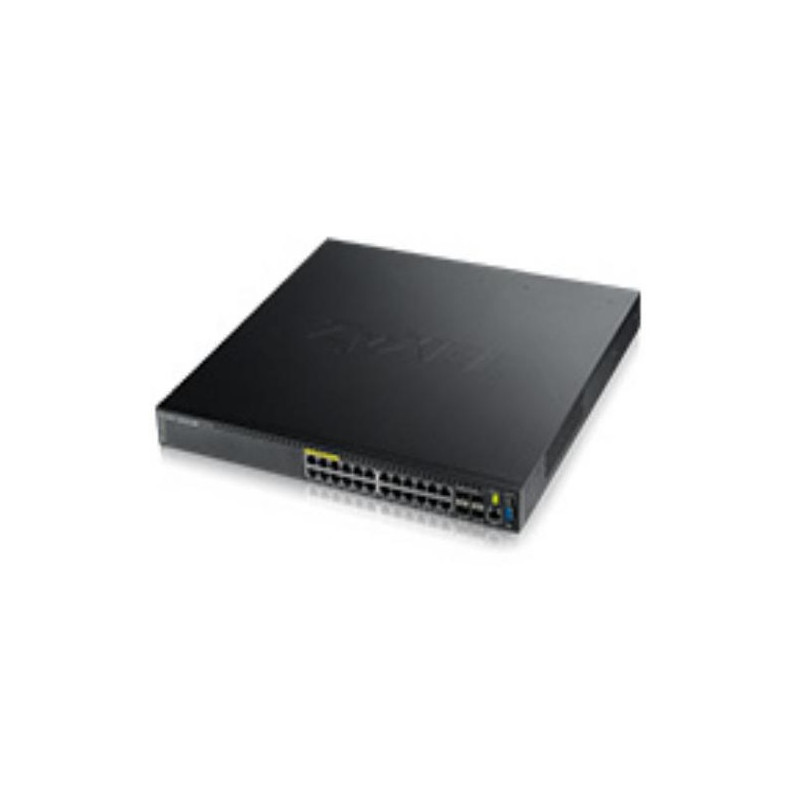

ZyXEL XGS3700-24HP

ZyXEL XGS3700-24HP

24-port GbE L2+ PoE Switch with 10GbE Uplink
Out of Stock
Reference: XGS3700-24HP-ZZ0101F

Require Project Pricing?

Click here to email your parts list and we will send you a quote
- Layer 2 Plus (Layer 3 Lite) feature set with static routing, policy-based routing, VRRP and ECMP support
- 10GbE SFP+ uplink flexibility
- 24 ports Gigabit Ethernet desktop connectivity
- Hot-swappable power supply and fan modules
- Internal redundant power supply design
- Provides up to 30 W per port with IEEE 802.3at PoE Plus compliance
- 1000 W or 460 W high PoE power budget
ZyXEL

Data sheet

AC input frequency
50/60 Hz
AC input voltage
100-240 V
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Certification
RoHS (Level A)
Colour of product
Black
Electromagnetic compatibility
FCC Part 15 (Class A), CE EMC (Class A), BSMI ENC
Heat dissipation
2046 BTU/h
Height
990mm
MAC address table
96000 entries
Mean time between failures (MTBF)
220000 h
Networking standards
IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3aq, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Operating relative humidity range
10 - 95 %
Operating temperature range (T-T)
0 - 50 °C
Power over Ethernet (PoE) support
Yes
Safety
LVB, BSMI
Source data-sheet
Icecat.biz
Storage relative humidity range
10 - 90 %
Storage temperature range (T-T)
-40 - 70 °C
Switch layer
L7
Throughput
95 Mpps
Weight
7.55 kg
Width
993 mm

Specific References

EAN13
4718937571772
