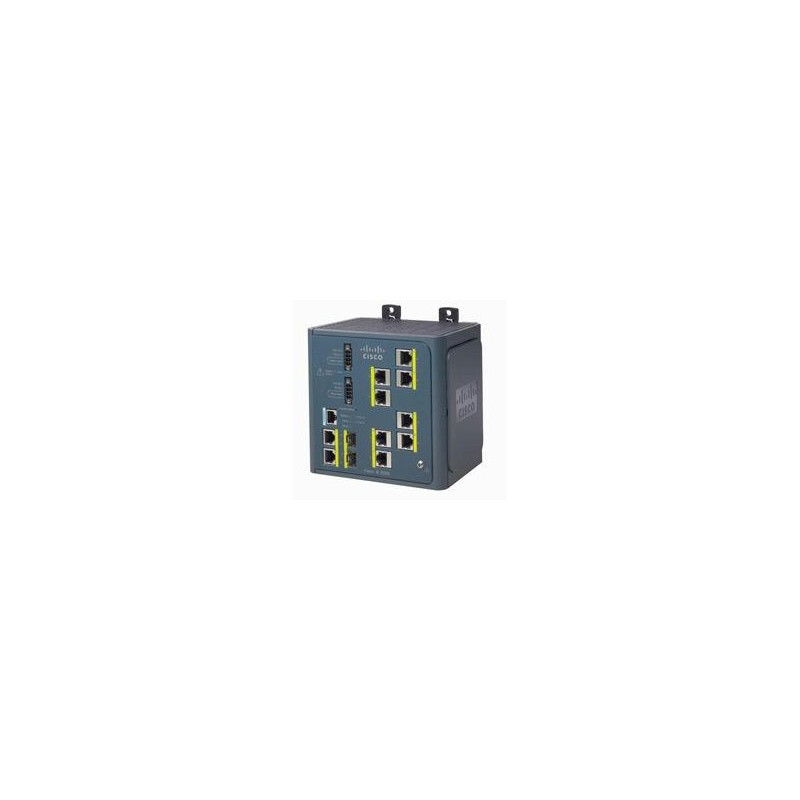

Cisco IE-3000-8TC-E
8 Ethernet 10/100, DC, Layer 3, 802.1q, QoS, IGMPv3, DHCP, 128 MB DRAM
Product Overview
The Cisco® Industrial Ethernet 3000 Series (IE 3000 Series) is a family of Layer 2 and Layer 3 switches that bring Cisco's leadership in switching to Industrial Ethernet applications with Innovative features, robust security, and superior ease of use. The Cisco IE 3000 Series features:
- Industrial design and compliance;
- Tools for easy deployment, management, and replacement;
- Network security based on open standards;
- Integration of IT and industrial automation networks;
- The Cisco IE 3000 Series is an ideal product for Industrial Ethernet applications, including factory automation, energy and process control, and intelligent transportation systems (ITSs);
- The Cisco IE 3000 offers;
- Design for Industrial Ethernet applications, including extended environmental, shock/vibration, and surge ratings; a complete set of power input options; convection cooling; and DIN-rail or 19" rack mounting;
- Support for hundreds of hardware configurations;
- Easy setup and management using the Cisco Device Manager web interface and supporting tools, including Cisco Network Assistant and CiscoWorks;
- Easy switch replacement using removable memory, allowing the user to replace a switch without having to reconfigure;
- High availability, guaranteed determinism, and reliable security using Cisco IOS® Software;
- Recommended software configurations for industrial applications that can be applied at the touch of a button;
- Compliance to a wide range of Industrial Ethernet specifications covering industrial automation, ITS, substation, railway, and other markets;
- Support for IEEE1588v2, a precision timing protocol with nanosecond-level precision for high-performance applications;
- Improved ring resiliency with the support of Resilient Ethernet Protocol (REP);
- Transparent IT integration with the support of Layer 3 routing protocols (IP Services);
- PROFINET v2 certification, with PROFINET conformance class B compliance;
- ABB Industrial IT certification.
The Cisco® Industrial Ethernet 3000 Series (IE 3000 Series) is a family of Layer 2 and Layer 3 switches that bring Cisco's leadership in switching to Industrial Ethernet applications with Innovative features, robust security, and superior ease of use. The Cisco IE 3000 Series features:
- Industrial design and compliance;
- Tools for easy deployment, management, and replacement;
- Network security based on open standards;
- Integration of IT and industrial automation networks;
- The Cisco IE 3000 Series is an ideal product for Industrial Ethernet applications, including factory automation, energy and process control, and intelligent transportation systems (ITSs);
- The Cisco IE 3000 offers;
- Design for Industrial Ethernet applications, including extended environmental, shock/vibration, and surge ratings; a complete set of power input options; convection cooling; and DIN-rail or 19" rack mounting;
- Support for hundreds of hardware configurations;
- Easy setup and management using the Cisco Device Manager web interface and supporting tools, including Cisco Network Assistant and CiscoWorks;
- Easy switch replacement using removable memory, allowing the user to replace a switch without having to reconfigure;
- High availability, guaranteed determinism, and reliable security using Cisco IOS® Software;
- Recommended software configurations for industrial applications that can be applied at the touch of a button;
- Compliance to a wide range of Industrial Ethernet specifications covering industrial automation, ITS, substation, railway, and other markets;
- Support for IEEE1588v2, a precision timing protocol with nanosecond-level precision for high-performance applications;
- Improved ring resiliency with the support of Resilient Ethernet Protocol (REP);
- Transparent IT integration with the support of Layer 3 routing protocols (IP Services);
- PROFINET v2 certification, with PROFINET conformance class B compliance;
- ABB Industrial IT certification.
Data sheet
- 10G support
- No
- AC adapter included
- Yes
- AC input voltage
- 100-240 V
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Fast Ethernet (10/100)
- Certification
- UL 60950-1, CSA C22.2 No. 60950-1, TUV/GS, EN 60950-1, CB IEC 60950-1, NOM, FCC, EN 55022, CISPR 22, CISPR11, VCCI, AS/NZS 3548, CNS 13438, KN 22
- Colour of product
- Black
- Connectivity LEDs
- Yes
- Copper ethernet cabling technology
- 1000BASE-T,100BASE-TX,10BASE-T
- Data link protocols
- Ethernet, Fast Ethernet, Gigabit Ethernet
- DC-in jack
- Yes
- Depth
- 112 mm
- DHCP client
- Yes
- DHCP server
- Yes
- Dimensions (WxDxH)
- 147 x 112 x 152 mm
- Flash memory
- 96 MB
- Height
- 147 mm
- Input current
- 1.3 - 0.8 A
- Input voltage
- 18 - 60 V
- Internal memory
- ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
- MAC address table
- 96000 entries
- Maximum data transfer rate
- 96 Gbit/s
- Mean time between failures (MTBF)
- 329451 h
- Networking features
- Yes
- Networking standards
- IEEE 802.1D,IEEE 802.1Q,IEEE 802.1x
- Operating altitude
- 914.4 - 2133 m
- Operating relative humidity (H-H)
- 10 - 95 %
- Operating relative humidity range
- 10 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- -40 - 75 °C
- Power consumption (typical)
- 15.1 W
- Power over Ethernet (PoE) support
- No
- Security algorithms
- 802.1x RADIUS,SNMP,SSH-2
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -25 - 85 °C
- Storage temperature range (T-T)
- -25 - 85 °C
- Supported data transfer rates
- x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
- Switch layer
- L7
- Switching capacity
- 993.6 Gbps
- Weight
- 2000 g
- Width
- 993 mm
Specific References
- EAN13
- 0882658300905
