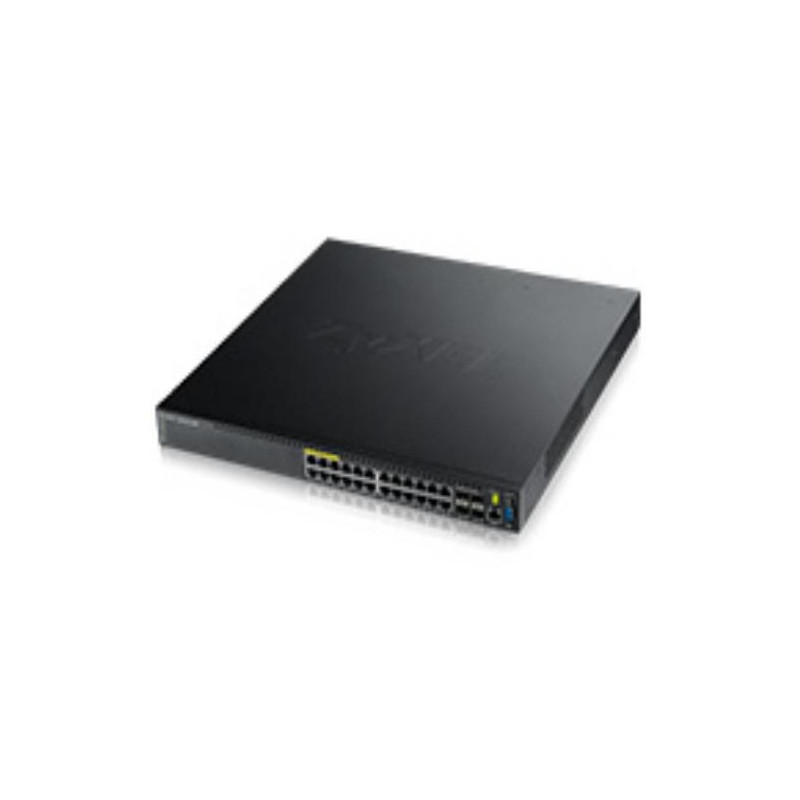

ZyXEL GS3700-24HP

ZyXEL GS3700-24HP

24-port GbE L2+ PoE Switch
Out of Stock
Reference: GS3700-24HP-ZZ0101F

Require Project Pricing?

Click here to email your parts list and we will send you a quote
- Layer 2 Plus (Layer 3 Lite) feature set with static routing, policy-based routing, VRRP and ECMP support

- Four (4) 1GbE SPF

- 24 ports Gigabit Ethernet desktop connectivity

- Hot-swappable power supply and fan modules

- Internal redundant power supply design

- Provides up to 30 W per port with IEEE 802.3at PoE Plus compliance

- 1000 W or 460 W high PoE power budget
ZyXEL

Data sheet

10G support
No
AC input frequency
50/60 Hz
AC input voltage
100-240 V
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Certification
RoHS (Level A)
Colour of product
Black
DC-in jack
Yes
Depth
437 mm
DHCP client
Yes
DHCP server
Yes
Electromagnetic compatibility
FCC Part 15 (Class A), CE EMC (Class A), BSMI ENC
Heat dissipation
2046 BTU/h
Height
990mm
MAC address table
96000 entries
Mean time between failures (MTBF)
220000 h
Networking standards
IEEE 802.1ab,IEEE 802.1ag,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3aq,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Operating relative humidity (H-H)
10 - 95 %
Operating relative humidity range
10 - 95 %
Operating temperature (T-T)
8 - 35 °C
Operating temperature range (T-T)
0 - 50 °C
Power over Ethernet (PoE) support
Yes
Safety
LVB, BSMI
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
10 - 90 %
Storage relative humidity range
10 - 90 %
Storage temperature (T-T)
8 - 85 °C
Storage temperature range (T-T)
-40 - 70 °C
Switch layer
L7
Switching capacity
993.6 Gbps
Throughput
42 Mpps
Weight
7440 g
Width
993 mm

Specific References

EAN13
4718937571673
