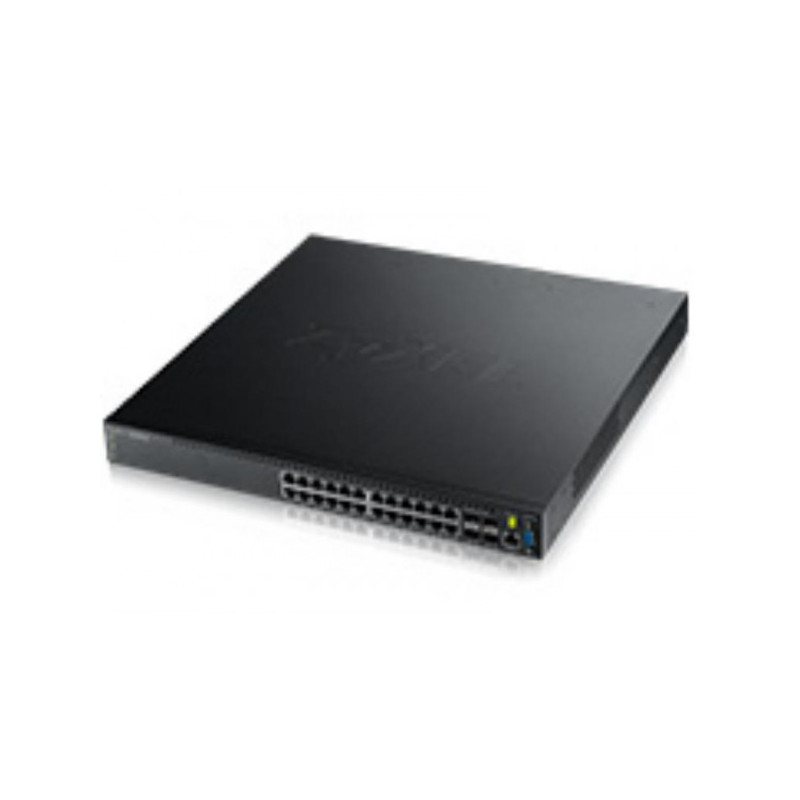

ZyXEL GS3700-24
24-port GbE L2+ Switch, 56Gbps, 42Mpps
- Layer 2 Plus (Layer 3 Lite) feature set with static routing, policy-based routing, VRRP and ECMP support
- Four (4) 1GbE SPF
- 24 ports of Gigabit Ethernet desktop connectivity
- Hot-swappable power supply and fan modules
- Internal redundant power supply design
- Four (4) 1GbE SPF
- 24 ports of Gigabit Ethernet desktop connectivity
- Hot-swappable power supply and fan modules
- Internal redundant power supply design
Data sheet
- 10G support
- No
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100-240 V
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Certification
- RoHS (Level A)
- Colour of product
- Black
- DC-in jack
- Yes
- Depth
- 437 mm
- DHCP client
- Yes
- DHCP server
- Yes
- Electromagnetic compatibility
- FCC Part 15 (Class A), CE EMC (Class A), BSMI ENC
- Heat dissipation
- 130.944 BTU/h
- Height
- 990mm
- MAC address table
- 96000 entries
- Mean time between failures (MTBF)
- 280000 h
- Networking standards
- IEEE 802.1ab,IEEE 802.1ag,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3aq,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
- Operating relative humidity (H-H)
- 10 - 95 %
- Operating relative humidity range
- 10 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 50 °C
- Power over Ethernet (PoE) support
- No
- Safety
- LVB, BSMI
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 10 - 90 %
- Storage relative humidity range
- 10 - 90 %
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -40 - 70 °C
- Switch layer
- L7
- Switching capacity
- 993.6 Gbps
- Throughput
- 42 Mpps
- Weight
- 7240 g
- Width
- 993 mm
Specific References
- EAN13
- 4718937571642
24-port GbE L2+ Switch, 56Gbps, 42Mpps
