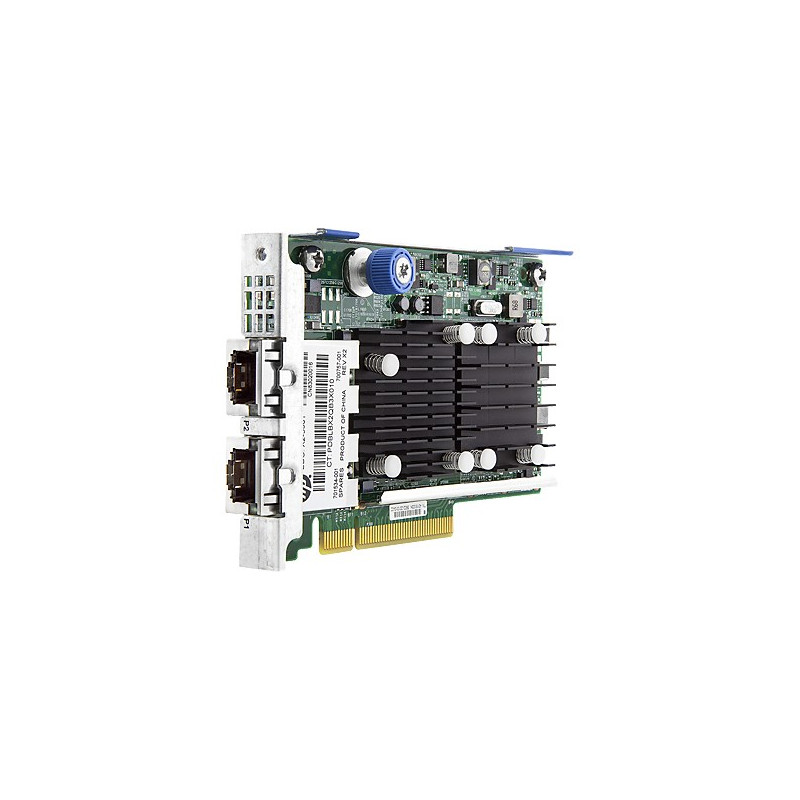

Hewlett Packard Enterprise 533FLR-T
FlexFabric 10Gb 2P 533FLR-T Adapter
Are your enterprise data centers growing and requiring increased network performance? Increased workload demands are putting pressure on server I/O. The HP FlexFabric 10Gb 2-port 533FLR-T Adapter increases throughput for the HP ProLiant Gen8 DL and SL Server series by using the innovative HP FlexibleLOM form factor to offer dual-ports in a 10GBASE-T adapter configuration.
This is an affordable choice for workload-intensive computing environments, providing a reliable, high performance 10 GbE connectivity solution.
Accelerates Server Performance
- The HP FlexFabric 10Gb 2-port 533FLR-T Adapter boosts network performance with full line-rate 10 GbE throughput across all ports.
- Provides increased server performance by delivering full hardware offload for storage traffic.
Robust Virtualization Capabilities
- The HP FlexFabric 10Gb 2-port 533FLR-T Adapter delivers Single Root I/O Virtualization (SR-IOV) support to allow multiple operating systems to share a physical interconnect.
- Supports Vmware NetQueue and Microsoft VMQ technologies.
- Enhances network management and efficiency with support for VLAN tagging.
Streamlines Deployment and Management
- Makes Broadcom Ethernet solutions available across a wide range of HP server platforms.
- Unifies NIC and storage management using HP ProActive Insight architecture.
- Provides backward compatibility with existing 1GbE networks and low-cost CAT 6a UTP cabling, supporting distances up to 100 meters.
This is an affordable choice for workload-intensive computing environments, providing a reliable, high performance 10 GbE connectivity solution.
Accelerates Server Performance
- The HP FlexFabric 10Gb 2-port 533FLR-T Adapter boosts network performance with full line-rate 10 GbE throughput across all ports.
- Provides increased server performance by delivering full hardware offload for storage traffic.
Robust Virtualization Capabilities
- The HP FlexFabric 10Gb 2-port 533FLR-T Adapter delivers Single Root I/O Virtualization (SR-IOV) support to allow multiple operating systems to share a physical interconnect.
- Supports Vmware NetQueue and Microsoft VMQ technologies.
- Enhances network management and efficiency with support for VLAN tagging.
Streamlines Deployment and Management
- Makes Broadcom Ethernet solutions available across a wide range of HP server platforms.
- Unifies NIC and storage management using HP ProActive Insight architecture.
- Provides backward compatibility with existing 1GbE networks and low-cost CAT 6a UTP cabling, supporting distances up to 100 meters.
Data sheet
- Chipset
- Broadcom BCM57810S
- Connectivity technology
- Wired
- Data transfer rate (max)
- 20000 Mbit/s
- Ethernet LAN (RJ-45) ports quantity
- 2
- Ethernet LAN connection
- Yes
- Ethernet LAN data transfer rates
- 10, 100, 1000, 10000 Mbit/s
- Flash memory
- 96 MB
- Host interface
- x8 PCI-e 2.0
- Interface
- XFP
- Networking standards
- IEEE 802.1Q,IEEE 802.3,IEEE 802.3ad,IEEE 802.3x
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating relative humidity range
- 5 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 55 °C
- Power consumption (typical)
- 15.5 W
- RoHS compliance
- Yes
- Source data-sheet
- Icecat.biz
Specific References
- EAN13
- 0887111292018
FlexFabric 10Gb 2P 533FLR-T Adapter
