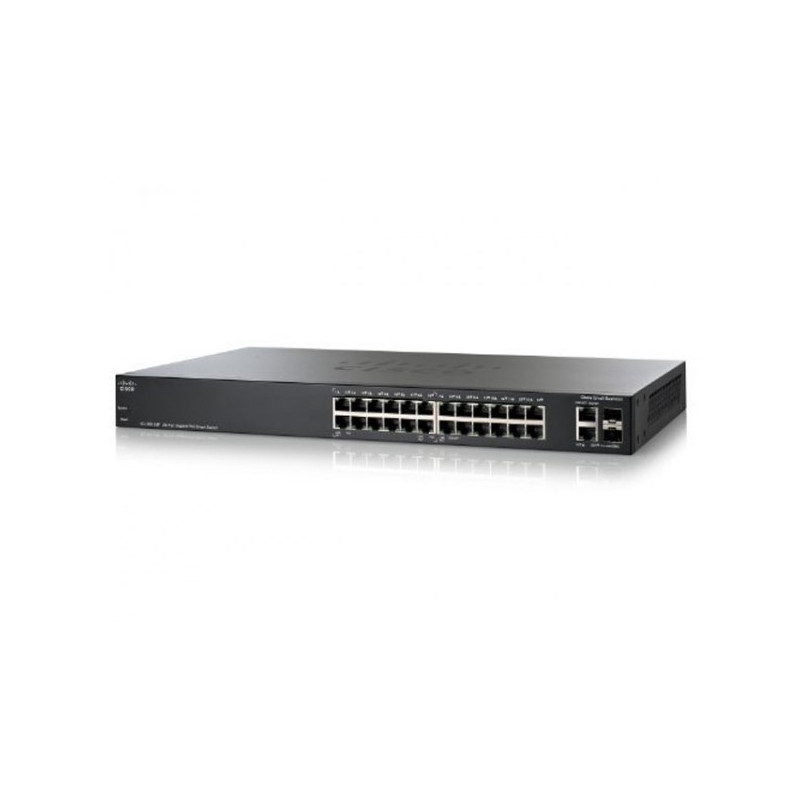

Cisco SF200-24
  • Cisco SF200-24
  • Cisco SF200-24

Cisco SF200-24

SF200-24, 1U, Managed, 24 x RJ-45 Fast Ethernet, 2 x Combo Gigabit Ethernet, L2, IGMP, IPv6, QoS, DHCP, 128MB RAM, 16MB Flash, 14.5W, 3.04kg
Out of Stock
Reference: SLM224GT-EU

Require Project Pricing?

Click here to email your parts list and we will send you a quote
The Right Features at the Right Price

Cisco Small Business 200 Series Smart Switches combine powerful network performance and reliability to build a basic business network. These entry-level managed switches deliver the essential network features you need, with the easy-to-use management you want at a great price.



Small Business 200 Series Smart Switches offer:

Numerous features

Achieve a business-class network with important features like quality of service, Power over Ethernet, and IPv6 support.



Simplification

Remove complexity from the setup process using the browser-based configuration interface of this device.



Performance

Get your high-bandwidth data where it needs to go, quickly and without errors.



Security

Keep the data on your network safe from unauthorized access.

An eco-friendly solution: Use switches to optimize power usage for energy efficiency without compromising performance.



Peace of mind

Rest assured that all Small Business 200 Series Smart Switches are protected by the Cisco Limited Lifetime Hardware Warranty.
Cisco

Data sheet

10G support
No
Authentication method
MD5
Basic switching RJ-45 Ethernet ports quantity
24
Certification
CSA, CE, FCC
Colour of product
Black
Connectivity LEDs
Yes
Connectivity technology
Wired
Copper ethernet cabling technology
1000BASE-T,1000BASE-TX,100BASE-TX,10BASE-T
DHCP client
Yes
DHCP server
Yes
Dimensions (W x D x H)
440.7 x 256.5 x 44.2 mm (17.35 x 10.1 x 1.74 ")
Dimensions (WxDxH)
440 x 257 x 44.32 mm
Fiber ethernet cabling technology
1000BASE‑LX,1000BASE‑SX
Flash memory
96 MB
Heat dissipation
49.5 BTU/h
Input current
9/4.5 A
Input voltage
–36 - –72 V
Internal memory
≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
MAC address table
96000 entries
Management protocols
IGMP v1/v2
Maximum data transfer rate
96 Gbit/s
Mean time between failures (MTBF)
414166 h
MIB support
RMON
Networking features
Yes
Networking standards
IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Number of VLANs
8000
Operating relative humidity (H-H)
10 - 90 %
Operating relative humidity range
10 - 90 %
Operating temperature (T-T)
8 - 35 °C
Operating temperature range (T-T)
0 - 40 °C
Power consumption (typical)
14.5 W
Power over Ethernet (PoE) support
No
Safety
UL
Security algorithms
802.1x RADIUS,HTTPS
Security algorithms supported
802.1x RADIUS, HTTPS
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
10 - 90 %
Storage relative humidity range
10 - 90 %
Storage temperature (T-T)
8 - 85 °C
Storage temperature range (T-T)
-20 - 70 °C
Supported data transfer rates
x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
Supported network protocols
IPv4/v6, SNTP, TFTP, HTTP, BOOTP, TFTP, LLDP
Switch layer
L7
Switching capacity
993.6 Gbps
Throughput
6.55 Mpps
Weight
3040 g

Specific References

EAN13
0008265829862
