Hewlett Packard Enterprise 2920-48G-POE+

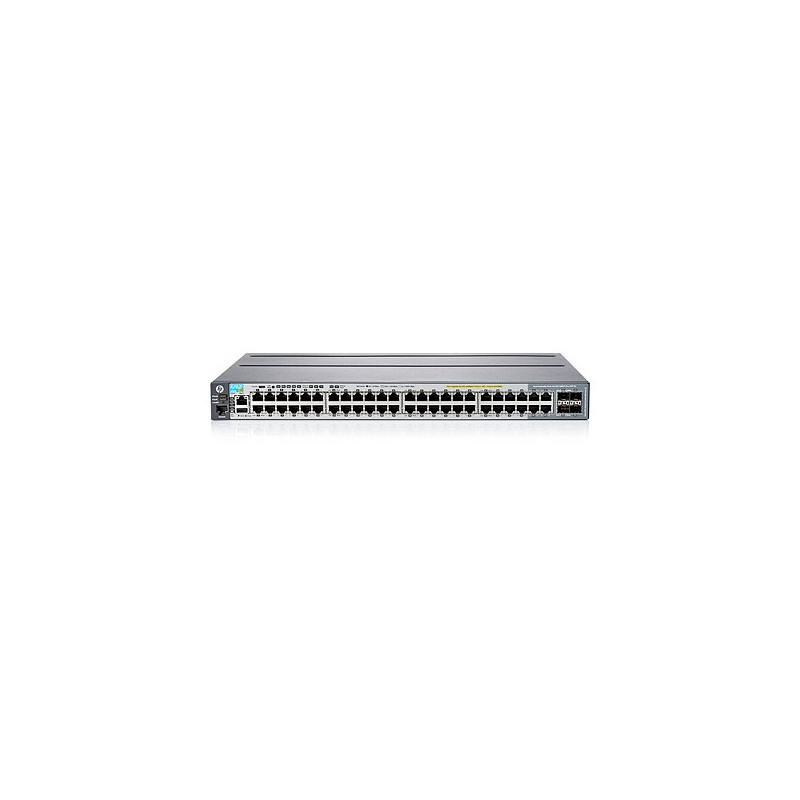

HP 2920-48G-POE+ 740W Switch
The HP 2920 Switch Series provides security, scalability and ease of use for enterprise edge, SMB and branch office access layer deployments. A powerful HP Networking ASIC delivers low latency, more packet buffering, and adaptive power consumption to this robust Basic Layer 3 switch that supports modular stacking, 10GbE, RIP routing, PoE+, ACLs, sFlow and IPv6.
The HP 2920 Switch Series can be managed with the optional HP Intelligent Management Center (IMC) software for a single view of your entire network and is ready for the Software-defined Network (SDN) with OpenFlow support.
Features
Flexible, Scalable and SDN Ready Access Layer Switches
The HP 2920 Switch Series provides security, scalability and ease of use for enterprise edge, SMB and branch office access layer deployments.
Cost-effective pay as you grow modular stacking, support for up to four 10GBASE-T (or SFP+) links and upgradeable power supplies allow your network to quickly scale when needed.
Robust Basic Layer 3 feature set includes static and RIP routing, PoE+, ACLs, sFlow, IPv6 and requires no software licensing.
Software-defined Network (SDN) enabled with OpenFlow support for your network.
High Performance and Power at the Edge
The HP 2920 Switch Series is designed with a powerful HP Networking ASIC, providing low latency, increased packet buffering, and adaptive power consumption so the network can support the media-rich, bandwidth intensive applications your business depends on.
Increase performance with selectable queue configurations and associated memory buffering that meets your network application requirements.
With up to 740W of internal PoE+ power, the 2920 Switch Series can easily scale to 1440 Watts with a simple connection to an external power supply (EPS) or redundant power supply (RPS).
Plug and play stacking with automated failover enhances network resiliency and RPS support delivers power redundancy.
Efficient 80plus.org Silver Grade Power Supplies, Energy Efficient Ethernet and LLDP-MED conserve energy resources. Removable power supplies reduce downtime during upgrades and servicing.
Security and Quality of Service You Can Rely On
The HP 2920 Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances and help protect your data from both inside and outside attacks.
Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.
Powerful multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.
Simplify with a Single View of the Network
The HP 2920 Switch Series can be seamlessly managed with the optional HP Intelligent Management Center (IMC) Software to provide end-to-end network transparency with a consistent network experience through comprehensive configuration, compliance and policy management.
RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.
The HP 2920 Switch Series can be managed with the optional HP Intelligent Management Center (IMC) software for a single view of your entire network and is ready for the Software-defined Network (SDN) with OpenFlow support.
Features
Flexible, Scalable and SDN Ready Access Layer Switches
The HP 2920 Switch Series provides security, scalability and ease of use for enterprise edge, SMB and branch office access layer deployments.
Cost-effective pay as you grow modular stacking, support for up to four 10GBASE-T (or SFP+) links and upgradeable power supplies allow your network to quickly scale when needed.
Robust Basic Layer 3 feature set includes static and RIP routing, PoE+, ACLs, sFlow, IPv6 and requires no software licensing.
Software-defined Network (SDN) enabled with OpenFlow support for your network.
High Performance and Power at the Edge
The HP 2920 Switch Series is designed with a powerful HP Networking ASIC, providing low latency, increased packet buffering, and adaptive power consumption so the network can support the media-rich, bandwidth intensive applications your business depends on.
Increase performance with selectable queue configurations and associated memory buffering that meets your network application requirements.
With up to 740W of internal PoE+ power, the 2920 Switch Series can easily scale to 1440 Watts with a simple connection to an external power supply (EPS) or redundant power supply (RPS).
Plug and play stacking with automated failover enhances network resiliency and RPS support delivers power redundancy.
Efficient 80plus.org Silver Grade Power Supplies, Energy Efficient Ethernet and LLDP-MED conserve energy resources. Removable power supplies reduce downtime during upgrades and servicing.
Security and Quality of Service You Can Rely On
The HP 2920 Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances and help protect your data from both inside and outside attacks.
Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.
Powerful multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.
Simplify with a Single View of the Network
The HP 2920 Switch Series can be seamlessly managed with the optional HP Intelligent Management Center (IMC) Software to provide end-to-end network transparency with a consistent network experience through comprehensive configuration, compliance and policy management.
RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.
Data sheet
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Built-in processor
- ARM1176
- Colour of product
- Grey
- Depth
- 336 mm
- Dimensions (WxDxH)
- 442.5 x 336 x 43.9 mm
- Electromagnetic compatibility
- FCC part 15 Class A; VCCI Class A; EN 55022/CISPR 22 Class A
- Flash memory
- 1024 MB
- Heat dissipation
- 399 BTU/h
- Height
- 43.9 mm
- I/O ports
- 44 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)
Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 4 RJ-45 dual-personality 10/100/1000 PoE - Input voltage
- 110-240 VAC
- Internal memory
- ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
- Latency
- < 3.2 µs (FIFO 64-byte packets)
- Latency (10 Gbps)
- 3.2 µs
- MAC address table
- 96000 entries
- Management platform
- HP PCM+; IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; out-of-band management (RJ-45 Ethernet); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; out-of-band management (serial RS-232C or Micro USB)
- Operating altitude
- 3 km
- Operating relative humidity range
- 15 to 95 %
- Operating temperature range (T-T)
- 0 - 55 °C
- Power consumption (typical)
- 487 W
- Power requirements
- 740 W of PoE+ power is available using the internal default power supply.
- Power supply type
- 1 x J9737A
- Safety
- CE Labeled; EN 60825-1 Safety of Laser Products-Part 1; FCC Part 15, Subpart B; GOST; EU RoHS Compliant; EN 55022 Class A; EN 55024: 1998; C-Tick; ICES-003, Class A; VCCI Class A; IEC 60950-1:Second Edition; IEC 60825-1; EN62479:2010; CSA C22.2 No. 60950-
- Source data-sheet
- Icecat.biz
- Storage temperature range (T-T)
- -40 - 70 °C
- Switch layer
- L7
- Switching capacity
- 993.6 Gbps
- Throughput
- 130.9 mpps
- Weight
- 5830 g
- Width
- 442.5 mm
