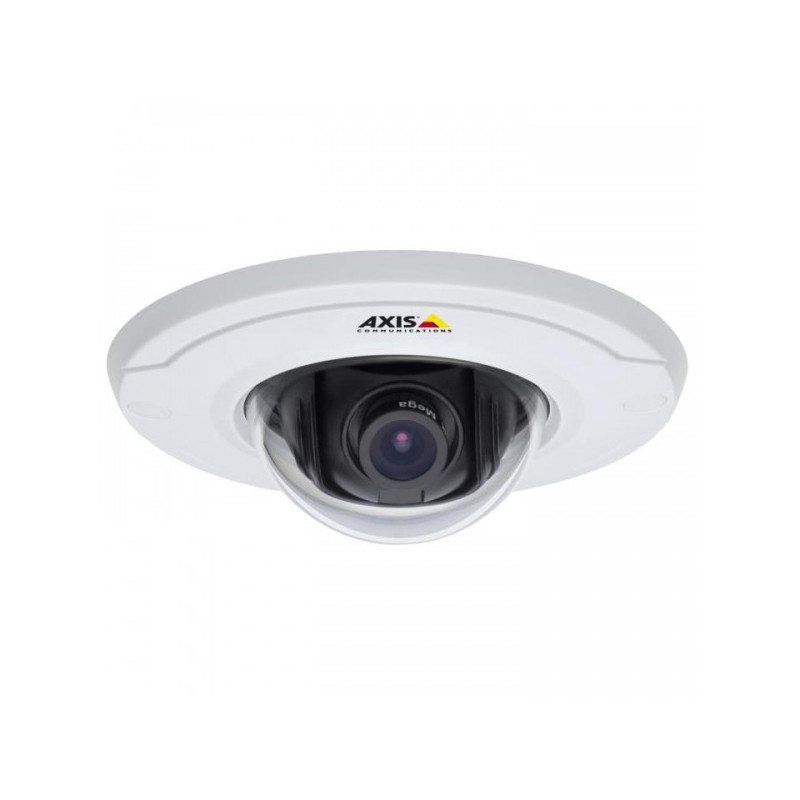

Axis M3014
M3014, Dome, CMOS, H.264, HDTV, 720p, 1MP
- Ultra-discreet fixed dome design
- HDTV quality
- Multiple H.264 streams
- Easy installation
- Power over Ethernet
- Advanced security and network management
Innovative, unique camera design
AXIS M3014 Fixed Dome Network Camera is an ultra-compact fixed dome with an innovative and unique camera design. It is specifically developed for recessed mounting in drop ceilings, creating an unmatched discreet solution for network video surveillance – measuring 9 cm (3.6”) in diameter and barely sticking out 3 cm (1.1”) from the ceiling.
AXIS M3014 is a 1 megapixel network camera using progressive scan technology. The camera offers multiple streams that can be individually optimized in H.264 as well as Motion JPEG. The H.264 compression enables optimization for bandwidth and storage efficiency by significantly reducing the bit rate.
- HDTV quality
- Multiple H.264 streams
- Easy installation
- Power over Ethernet
- Advanced security and network management
Innovative, unique camera design
AXIS M3014 Fixed Dome Network Camera is an ultra-compact fixed dome with an innovative and unique camera design. It is specifically developed for recessed mounting in drop ceilings, creating an unmatched discreet solution for network video surveillance – measuring 9 cm (3.6”) in diameter and barely sticking out 3 cm (1.1”) from the ceiling.
AXIS M3014 is a 1 megapixel network camera using progressive scan technology. The camera offers multiple streams that can be individually optimized in H.264 as well as Motion JPEG. The H.264 compression enables optimization for bandwidth and storage efficiency by significantly reducing the bit rate.
Data sheet
- Analog signal format system
- NTSC
- Built-in processor
- ARTPEC-3
- Cables included
- LAN (RJ-45)
- Cabling technology
- 10/100Base-T(X)
- Camera shutter speed
- 1/25000 s
- Camera shutter type
- Electronic
- Colour of product
- White
- Compatible operating systems
- Windows 7/Vista/ XP/2000
- Connectivity technology
- Wired
- Effective sensor resolution
- 1000000 pixels
- Ethernet LAN (RJ-45) ports quantity
- 1
- Ethernet LAN connection
- Yes
- F-number (relative aperture)
- 2
- Flash memory
- 96 MB
- Frame rate
- 9 fps
- Height
- 105 mm
- Housing material
- Zinc steel
- Interface
- XFP
- Lens diameter
- 2.8 mm
- Maximum resolution
- 1280 x 800 pixels
- Megapixel
- 1 MP
- Minimum illumination
- 7 lx
- Mounting type
- Ceiling
- Operating relative humidity range
- 20 - 80 %
- Operating temperature range (T-T)
- 0 - 45 °C
- Optical sensor size
- 1/0.157 mm (1/4 ")
- Placement supported
- indoor & outdoor
- Power over Ethernet (PoE) support
- Yes
- Rotation
- 180 °
- Sensor type
- Ultrasonic sensor
- Source data-sheet
- Icecat.biz
- Supported graphics resolutions
- 1280 x 800 (WXGA), 160 x 90
- Supported network protocols
- IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
- Supported video modes
- 720p
- Type
- IP
- Video formats supported
- H.264, M-JPEG
- Viewing angle, horizontal
- 80 °
- Viewing angle, vertical
- 48 °
- White balance
- Sodium lamp,Auto,Fluorescent,Halogen,Manual
- Width
- 91.6 mm
Specific References
- EAN13
- 7331021038059
M3014, Dome, CMOS, H.264, HDTV, 720p, 1MP
