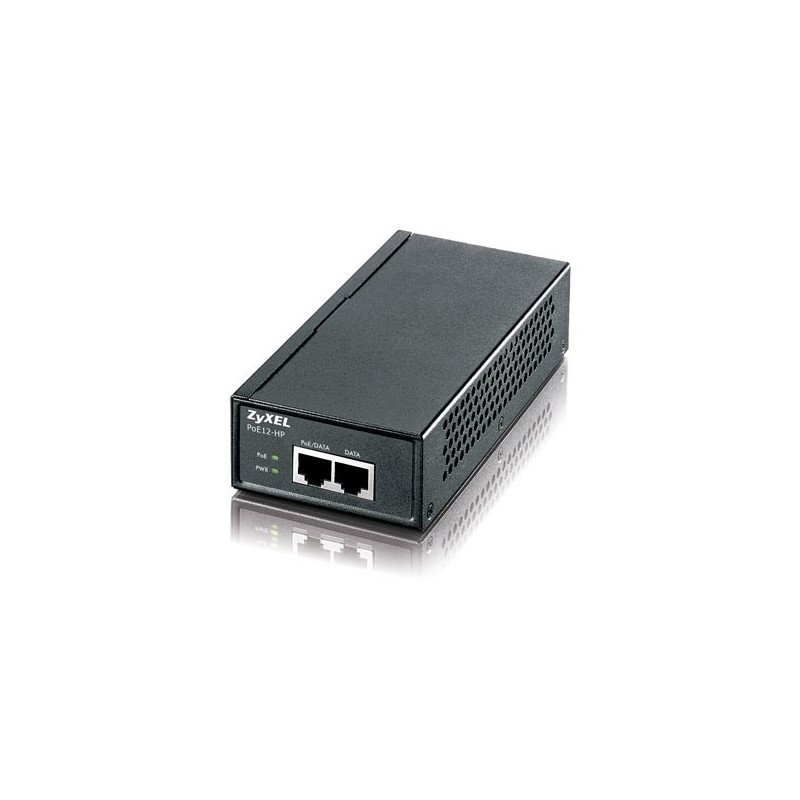

ZyXEL PoE12-HP
Single Port High Power IEEE 802.3at Power-over-Ethernet Injector, 1000Mbps, 30W
The ZyXEL PoE12 Series is a PoE injector designed to support the increasing power demands of the latest-generation N wireless Access Points (APs) as well as the pan, tilt or zoom functions of IP surveillance cameras. The PoE12 Series consists of two models: PoE-12 and PoE12-HP. The PoE-12 and PoE12-HP are single-port PoE injectors that deliver both power and data to other PoE devices via a single CAT-5 Ethernet cable without extra power supply. The PoE-12 enables 100Mbps data transmissions and provides power up to 15.4W, while the PoE12-HP allows data transmitted at 1000Mbps and delivers power up to 30W.
Data sheet
- Cabling technology
- 10/100/1000BASE-T
- Certification
- FCC Part15 (Class B)
CE EMC (Class B) - Compliance industry standards
- 802.3at
- Dimensions (WxDxH)
- 155 x 74 x 36 mm
- Ethernet LAN (RJ-45) ports quantity
- 2
- Ethernet LAN data transfer rates
- 10, 100, 1000 Mbit/s
- Input current
- 9/4.5 A
- Input frequency
- 50 / 60 Hz
- Input voltage
- –36 - –72 V
- Operating relative humidity (H-H)
- 10 - 95 %
- Operating relative humidity range
- 10 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 50 °C
- Package length
- 155 mm
- Package width
- 985.6 mm
- Packaging width
- 202 mm
- Power consumption (typical)
- 42.1 W
- Power over Ethernet (PoE) support
- Yes
- Safety
- EN 60950-1, CSA, EU RoHS
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage relative humidity range
- 5 - 95 %
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -40 - 70 °C
- Weight
- 396 g
Specific References
- EAN13
- 4718937567102
