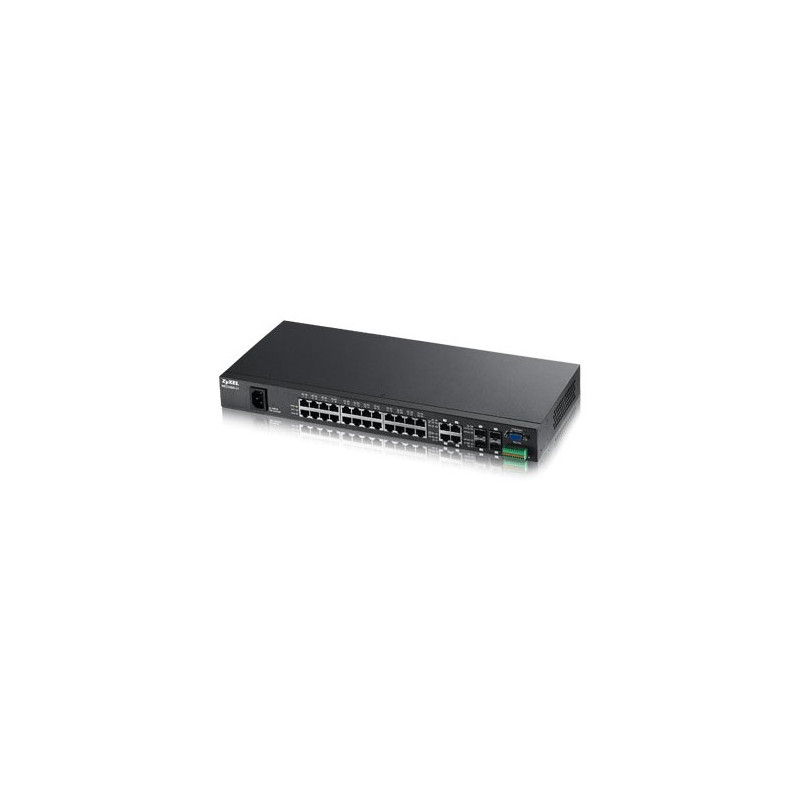

ZyXEL MES-3500-24
24-port Fast Ethernet L2 Switch w/ 4 x GbE Combo Port
The ZyXEL MES3500-24/MES3500-24F has been specially designed for service providers to deliver profitable Ethernet services. With the high-performance hardware platform, service providers can easily extend network topologies while enabling robust security, QoS and management functions to help customers fulfilling different needs and to support the IPv6 for trouble-free future network expansions.
Data sheet
- 10G support
- No
- AC input voltage
- 100-240 V
- Basic switching RJ-45 Ethernet ports type
- Fast Ethernet (10/100)
- Certification
- BSMI
CE
FCC
EN 60950-1
IEC 60950-1
EU RoHS - Colour of product
- Black
- Copper ethernet cabling technology
- 1000BASE-T,100BASE-TX,10BASE-T
- Depth
- 200 mm
- DHCP client
- Yes
- Height
- 990mm
- MAC address table
- 96000 entries
- Management protocols
- SNMP v1/v2c/v3, Telnet, DHCP
- MIB support
- RFC1213 MIB II
- Networking standards
- IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
- Operating relative humidity (H-H)
- 10 - 95 %
- Operating relative humidity range
- 10 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 50 °C
- Package height
- 71 mm
- Package weight
- 3450 g
- Package width
- 495 mm
- Packaging height
- 71 mm
- Packet buffer memory
- 0.32 MB
- Power consumption (typical)
- 9W
- Power over Ethernet (PoE) support
- No
- Security algorithms
- 802.1x RADIUS,SSH,SSL/TLS
- Security algorithms supported
- 802.1x RADIUS, SSH, SSL/TLS
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -40 - 70 °C
- Switch layer
- L7
- Switching capacity
- 993.6 Gbps
- Weight
- 2600 g
- Width
- 993 mm
Specific References
- EAN13
- 4718937567614
24-port Fast Ethernet L2 Switch w/ 4 x GbE Combo Port
