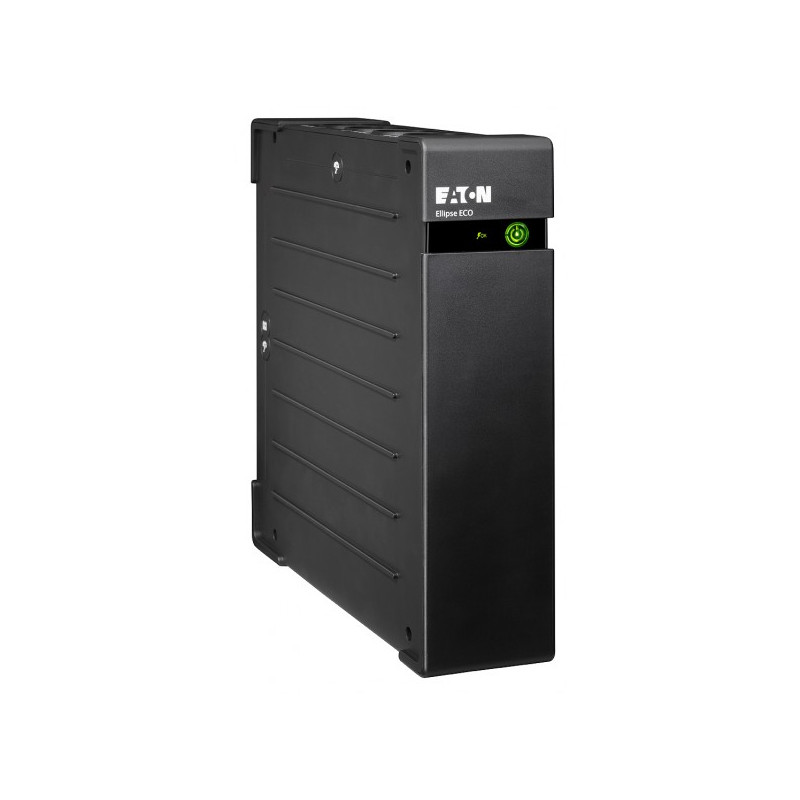

Eaton Ellipse ECO 1200 USB IEC
Ellipse ECO 1200 USB IEC
The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.
Data sheet
- AC outlet types
- C13 coupler
- AC outlets quantity
- 8 AC outlet(s)
- Battery replacement alarms
- Audible,LED
- Battery technology
- Sealed Lead Acid (VRLA)
- Bundled software
- Eaton Intelligent Power
- Colour of product
- Black
- Compatible operating systems
- Windows 7/Vista/XP
Mac OS X
Linux - Depth
- 312 mm
- Ethernet LAN (RJ-45) ports quantity
- 1
- Height
- 305 mm
- Input connection type
- IEC
- Input operation voltage (max)
- 284 V
- Input operation voltage (min)
- 161 V
- Nominal input voltage
- 83 - 159 VAC
- Nominal output voltage
- 220-240 V
- Output operation voltage (max)
- 415 V
- Output operation voltage (min)
- 97 V
- Output power
- 750 W
- Output power capacity (VA)
- 1200 VA
- Power plug
- Type G (BS 1363)
- Power supply input frequency
- 50/60 Hz
- Rack capacity
- 9U
- Safety
- IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1
- Source data-sheet
- Icecat.biz
- Surge protection features
- Fax,Modem,Network,Telephone
- Typical backup time at half load
- 10 min
- USB 2.0 ports quantity
- 7
- Weight
- 6700 g
- Width
- 81 mm
Specific References
- EAN13
- 3553340621239
